CAT5E F/UTP DCA 305M BX VT

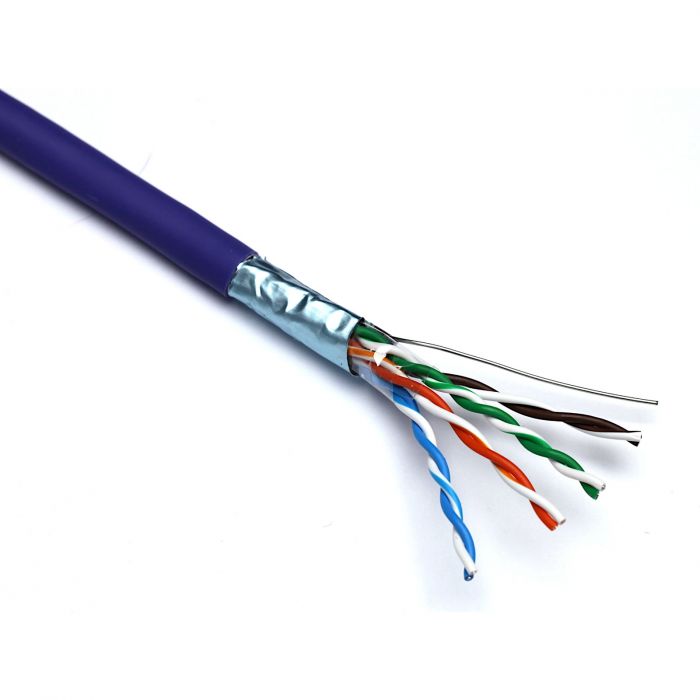

Excel solid Cat5e ethernet cable F/UTP LSOH CPR Euroclass Dca are manufactured and tested to ISO 11801, EN 50173 and ANSI/TIA‐568‐C Cat 5e specifications, 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs. These pairs are wrapped in an aluminium mylar tape screen with a solid 24 AWG drain wire._x000D_ _x000D_ The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information._x000D_ _x000D_ - Cat5e Solid Copper Cable_x000D_ - F/UTP Overall Foil Screening_x000D_ - No Conductor Screening_x000D_ - Outer sheath colour Violet_x000D_ - Reaction-to-fire class according to EN 13501-6: Dca_x000D_ - Smoke development class according to EN 13501-6: s2
