CAT6A U/FTP EXT FCA 500 M BK

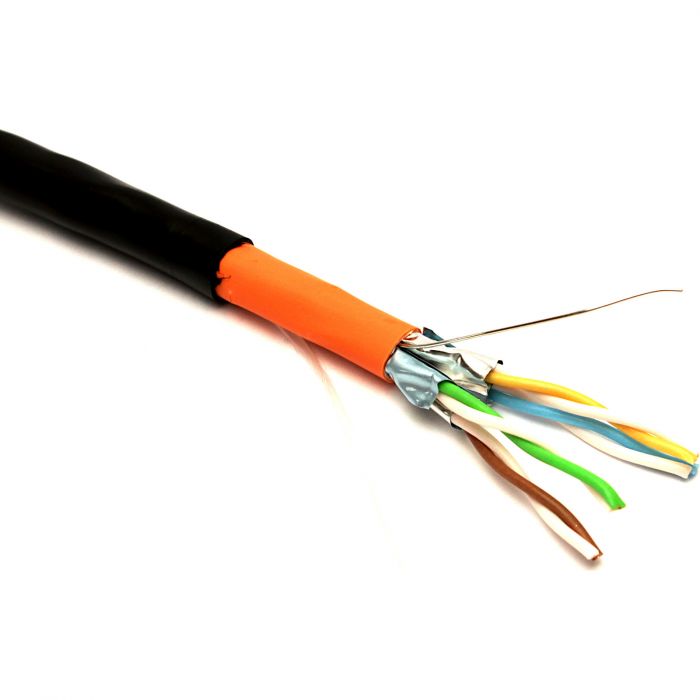

Excel Cat6A cable double sheath U/FTP S-Foil PE external sheath, B2ca inner sheath cable is manufactured to meet and exceed the ISO, CENELEC and TIA standards up to 90 m. The cables offer a protective PE sheath which is water, UV and moisture resistant and features a rip chord to assist with outer sheath removal. _x000D_ _x000D_ They can be installed outdoors in ducts and are suitable for use indoors when the PE sheath is removed. This cable is CPR rated on its inner Sheath as part code 190-980 and must have its black outer sheath removed when installed for more than 2 metres inside the building. _x000D_ _x000D_ Use with our Cat6A IP68 coupler to join to patch feild chords for easy termination to outdoor equipment. Excel Cat6A screened (U/FTP) cable takes the performance capabilities of copper infrastructure to new levels. This delivers Class EA/Augmented Category 6 link performance over distances of up 90 m which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet and POE++. _x000D_ _x000D_ Each cable consists of 4 pairs of solid cores wrapped in an S-Foil high quality, strong, aluminium/polyester foil tape providing screening for each pair. The foil configuration ensures separation of the pairs that ensures the performance. The individual pairs are set to different lay lengths to ensure optimum performance._x000D_ _x000D_ - Cat6A internal/external solid copper cable_x000D_ - U/FTP no overall screening_x000D_ - Foil screen per pair_x000D_ - Outer sheath black PE ultraviolet resistance: Fca class_x000D_ - CPR Rating is on inner sheath only as Part Code: 190-980_x000D_ - Reaction-to-fire class inner sheath to EN 13501-6: B2ca_x000D_ - Use with IP68 coupler: 100-151-EXS
